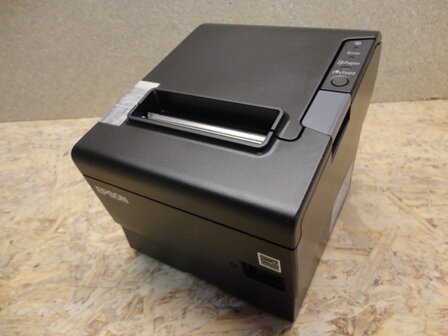

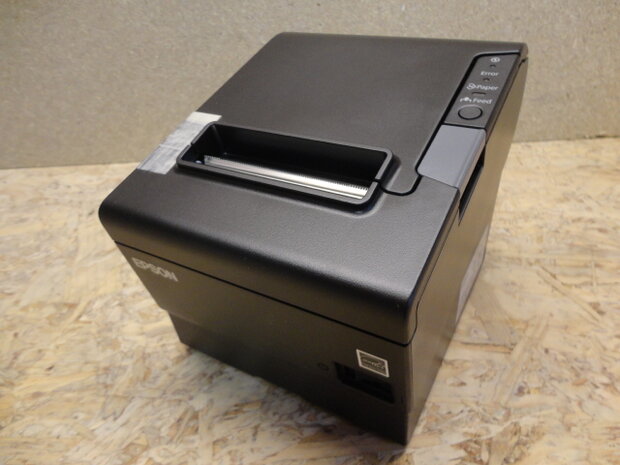

EPSON TM-T88V Bon Printer
Thermal Printer

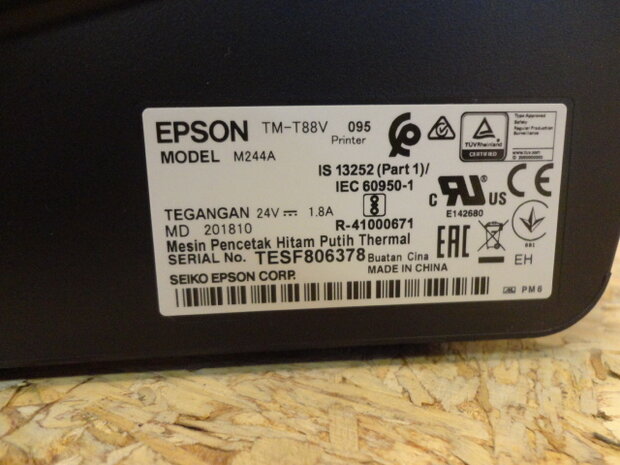

Model: M244A
Condition: NEW
Color: Black
Paper Width: 80mm & 58mm
Including: Power supply unit & Cable
Interfaces: RJ45 Network & USB and Cash drawer connection (RJ-11)
SPECIFICATIONS
Model Name TM-T88V
Print Method Thermal line printing
Print Font 9 x 17 / 12 x 24
Column Capacity (columns) 56 / 42
Character Size (mm) 0.99 (W) x 2.4 (H) / 1.41 (W) x 3.39 (H)
Character Set 95 Alphanumeric, 16set International, 128 43 Graphic
Bar code: UPC-A, UPC-E, JAN8(EAN), JAN13(EAN),
CODE39, CODE93, CODE128, ITF, CODABAR, GS1-128, GS1 DataBar
Two-dimensional code: PDF417, QRCode, MaxiCode, 2D GS1 DataBar, Composite Symbology
Character Per Inch 20 CPI / 15 CPI
Interfaces Standard USB/Serial - Optional with USB/Parallel - USB/Network - USB/WIFI
Data Buffer 4K bytes / 45 bytes
Print Speed Max. 300mm/sec
Paper Dimensions (mm) Roll paper: 79.5 0.5 (W) dia. 83.0 / 57.5 0.5 (W) dia. 83.0
Paper Thickness (mm) 0.06 to 0.07
Power 24 VDC 7%
Power Consumption Approx. 1.8 A (mean)
D.K.D. Function 2 drives
Reliability Printer Mechanism Life 20 million lines
Auto cutter life 2 million cuts (when using OJI Paper PD150R or PD160R)
MTBF 360,000 hours
MCBF 70,000,000 lines
Overall Dimensions (mm)145 (W) x 195 (D) x 148 (H)
Mass (Approx) 1.6 kg
EMC Standards FCC, VCCI, CE marking, AS / NZS CISPR22 class A
GOST-R
Power Supply 24V - 2Amp
