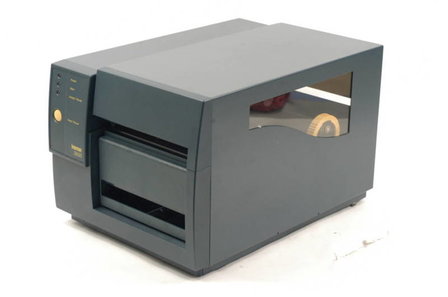

Intermec EasyCoder 3600 General Specifications
Direct Thermal and Thermal Transfer Printer for high volume wide self-adhesive label, ticket and tag applications. Internal rewind and auto-peel.
Model
Intermec EasyCoder 3600
Physical Characteristics
Length: 44cm (17.25)
Height: 27.7cm (10.9)
Width: 30.5cm (12)
Weight: 20.4kg (45 lbs)
Print Specifications
Element: 0.125mm (0.00492)
Maximum Length: Unlimited
Maximum Width: 168mm (6.6)
X Dimension: 0.13 to 1.27mm (5 to 50mil)
Speed: 51, 77, 102 or 127mm/sec (select 2, 3, 4, or 5/sec)
Resolution: 8 dots/mm (203dpi)
Media Specifications
Roll: 152m (6,000 linear)
Roll Dimensions: 213mm (8.38)
Width: 76 to 170mm (3 to 6.7)
Thickness: .08 to .3mm (0.003 to 0.012)
Core Size: 76mm (3)
Ribbons Specifications
Roll: 152m (6000 linear)
Widths: 77, 104, 137 & 170mm (3, 4.1, 5.4, 6.7)
Standard Features
Auto-Peel with liner take up
Digital thermal compensation-dot-by-dot- electronics for excellent print quality, even for rotated bar codes
Compatible with Intermec's printer family and supports 86XX printers in emulation mode
Industrial design with enclosed label supply
128K NVRAM for permanent storage of downloaded fonts, graphics and label formats
Communications
Rate: 1,200 to 19,200 bps
Flow Control: XON/XOFF, ready/busy
Asynchronous: RS-232C, RS-422, RS-485
Fonts and Graphics
21 resident bitmapped fonts (includes OCR-A and OCR-B)
Outline font
Supports user-defined fonts and graphics
Language
IPL is an advanced printer programming language that includes many features not available in other bar code printers
Advanced bar code algorithms handle all required encodation
Error detection protocols verify secure data transmission
Command errors and printer status are easily identified to your host
Communicates in printable ASCII or control characters
Independent character and field rotation
Connectivity
Serial interface standard
Microsoft Windows
Intermec InterDriver standard Windows 3.x, 9x, NT 4.0/5.0
Intermec ActiveX controls standard Windows 9x, NT 4.0/5.0
PrintSet printer configuration utility Windows 3.x, 9x, NT 4.0/5.0
NetPilot + Thin Wizard network configuration utility (with optional Ethernet) Windows 9x, Windows NT 4.0/5.0
Character Sets
Code page 850, French, German, ISO 256 character, Italian, Kanji/Katakana (optional), Norwegian/Danish, Spanish, Swedish/Finnish, Swiss, UK ASCII, USA ASCII
Power Supply
100, 115, 200 and 230 VAC = 10%; 50 Hz to 60 Hz
