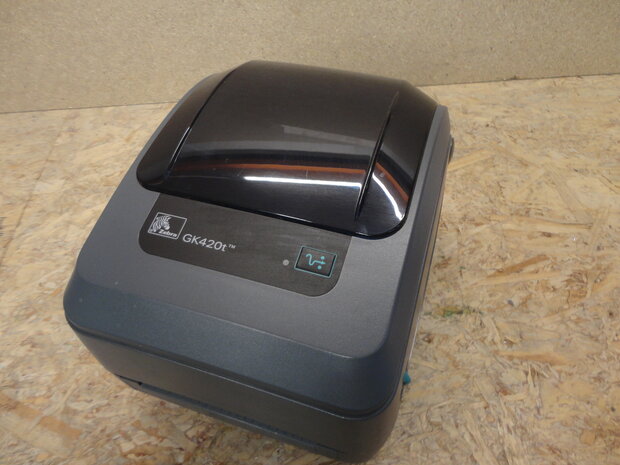

Zebra GK420T Thermisch Transfer Printer:
Thermisch Transfer & Thermisch Direct
Resolutie: 203Dpi
Toepassing: Barcodes - Labels - Sticker
Conditie: Occasion
Aansluiting: USB
Maximale Media Breedte: 10,8 cm
Inclusief:
Voedings Adapter
USB Kabel
Printer Specifications
Resolution 203 dpi (8 dots/mm)
MemoryStandard: 8 MB SDRAM (3 MB available to end user); 4 MB Flash (1.5 MB available to end user)
Print width 4.09" (104 mm)
Print length 39" (991 mm)
Print speed 5" (127 mm)/sec
Media sensors Reflective
Transmissive
ã
Media Characteristics
Maximum label and liner width 4.25" (108 mm)
Minimum label and liner width 0.75" (19 mm)
Maximum label and liner length 0.38" (9.7 mm) to 39" (991 mm)
Maximum roll diameter 5" (127 mm)
Core diameter 0.5" (12.7 mm), 1.0" (25.4 mm), 1.5" (37.1 mm)
Media thickness 0.003" (0.08 mm) to 0.0075" (0.20 mm)
Media typesblack bar, black mark, continuous, continuous receipt, die-cut, fanfold, gap, notched, perforated, receipt, roll-fed, tag, tag stock
ã
Ribbon Characteristics
Outside diameter 1.34" (34 mm)
Standard length 244' (74 m)
Ratio 1:1
Ribbon width
Recommended to be at least as wide as media
1.33" (33.8 mm) to 4.3" (110 mm)
ID Core 0.5" (12.7 mm)
ã
Operating Characteristics
Operating temperatureTT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal
Storage temperatures -40° F (-40° C) to 140° F (60° C)
Operating humidity 10-90% non-condensing
Storage humidity 5-95% non-condensing
Electrical Auto-detecable (PFC Compliant) 100-240 VAC, 50-60 Hz
Agency approvals
FCC Part 15
Subpart 15
VCCI
C-Tick
EN55022 Class-B
EN6100-3-2
EN6100-3-3
EN55024
CCC
CB Scheme IEC 60950: 1991 +A1 +A2 + A3 +A4
TUV NRTL
IRAM
NOM
AAMI
ã
Physical Characteristics
Width 7.6" (194 mm)
Height 7.5" (191 mm)
Depth 10" (254 mm)
Weight 4.6 lbs (2.1 kg)
Shipping weight 9.1 lbs (4.1 kg)
Orientation Center
ã
Related Product
Options
10/100 internal Ethernet connectivity
Dispenser - label peel and present with present sensor
Asian font sets

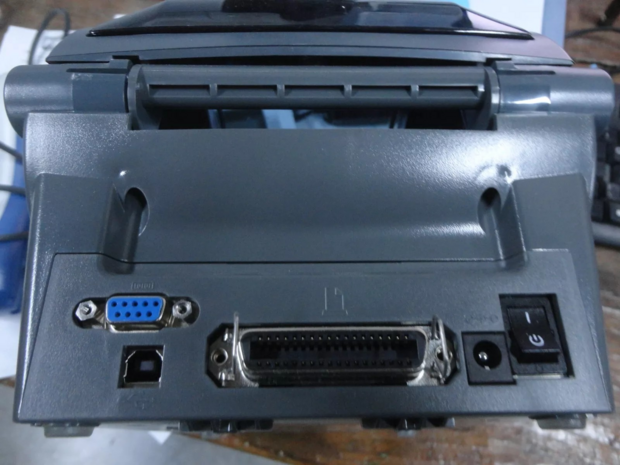

Communication and Interface Capabilities
Auto-sensing Serial RS-232 (DB-9)
USB V1.1, bi-directional
Centronics Parallel
10/100 internal Ethernet (replaces parallel port)
ã
Programming Languages
Core programming languages EPL2, ZPL I/ZPL II
ã
Bar Codes/Symbologies
Linear Codabar
Code 11
Code 128
Code 128 with subsets A/B/C
Code 39
Code 93
EAN-13
EAN-14
EAN-8
EAN-8 and EAN-13 with 2 or 5 digit extensions
German Post Code
Industrial 2-of-5
Interleaved 2-of-5
Japanese Postnet
Logmars
MSI
MSI-3
Plessey
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UCC/EAN-128
UPC and EAN 2 or 5 digit extensions
UPC-A
UPC-A and UPC-E with 2 or 5 digit extensions
UPC-A and UPC-E with EAN 2 or 5 digit extensions
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MacroPDF417
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics
16 resident expandable ZPL II bitmap fonts
One resident scalable ZPL font
Five resident expandable EPL2 bitmap fonts
Supports user-defined fonts and graphics - including customer logos
